Protocols vs. methods

Understanding differences to better collect data

November 2024

Sophie Pamerlon

Yvan Le Bras

Olivier Norvez

Data engineer
@GBIF-France

Scientific and technical coordinator
@PNDB
@DataTerra

Animation coordinator
@PNDB
@DataTerra

Table of contents

Table of contents








Context and issues


Protocols vs. methods


Resources

 Context and issues

Context and issues

Heterogeneity (data types, origin, standards) &
Diversity of “objects” to be linked together1

Loss of information over time2

Context and issues

Computational reproducibility frequently refers to the ability to generate equivalent analytical outcomes from the same data set using the same code and software1.

[…] all raw data and metadata, code, programming scripts, and bespoke software necessary for fully replicating any analyses that lead to inferences made in a published study2.

Context and issues



 Protocols vs. methods

Protocols vs. methods

Biodiversity monitoring

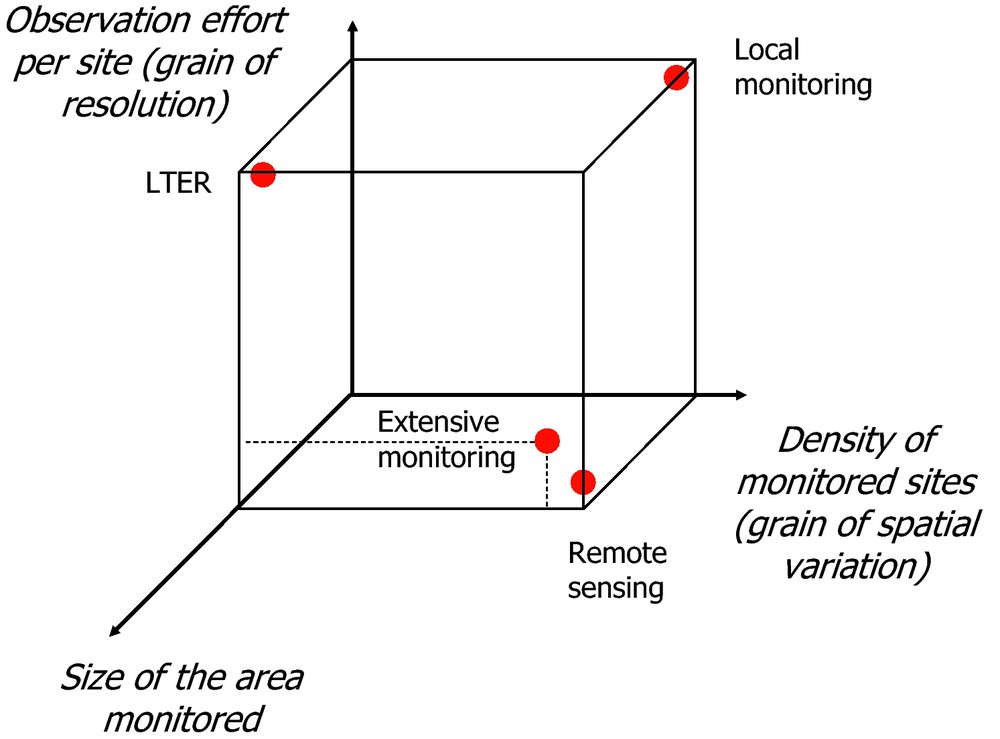

“A monitoring scheme is the result of a compromise between three parameters: the size of the area surveyed, the density of sites sampled within this area and the observation effort per site” Couvet et al. (2011)

“Contrasted options for monitoring biodiversity, depending on the size of the area monitored, the density of sites and the observation effort per site, with different consequences on the grain of resolution and spatial variation and, therefore, on precision and generality of the ecological patterns observed.” Couvet et al., (2011)

Protocols vs. methods

Protocols: Prescriptive way of generating data

Methods: How the protocol was applied in real conditions, with the possibility of having adapted the protocol to adapt it to the constraints of the manipulations and above all the information of numerous important pieces of information for the reuse of the data, in particular their analysis (problems which appeared, “batch” effects or “manipulation conditions” or other, etc.).

Table 1: Conditions proposed for extensive monitoring protocols over a large territory to maximise scientific output. From Couvet et al. (2011)
Characteristics of the protocol Scientific advantages
Density of sites sampled Assessment of fine-grained spatial variation, of diffuse cumulative interactions and of remote environmental effects
Monitoring of each species within a community Assessment of the state of the community Distinction of specific versus general impacts, comparing species responses based on their ecological traits
Standardised methods of observation Biodiversity measures can be compared in space and time (phenology, abundance, etc.)
Regular sampling (depends on generation times: annual for long-lived species like birds, but might be shorter for other species, and different in non-seasonal environments) Assessment of fine-grained temporal variation, which can be related to environmental factors of comparable variability such as climate and land-use factors

Protocols vs. methods

Good Level of FAIRness during data acquisition

  • Open data (CC-BY 4.0 compatible with Etalab)
  • Mandatory license
  • Direct link to download raw datasets
  • Thematic scope (All biodiversity including paleo- and archaeo-biodiversity)
  • Geographic scope (Data produced by France)
  • Temporal coverage (at least one data acquisition date)
  • Abstract
  • Title, authors and contacts
  • Acquisition framework (at least via a text field)
  • DOI / unique identifiers
  • taxonomic coverage (if taxa are present)
  • keywords related to the Thesaurus
  • Data attributes (Dictionary of data attributes with units and descriptions)
  • Semantic annotation (Keywords and attribute names, unlimited usable resources)

Protocols vs. methods

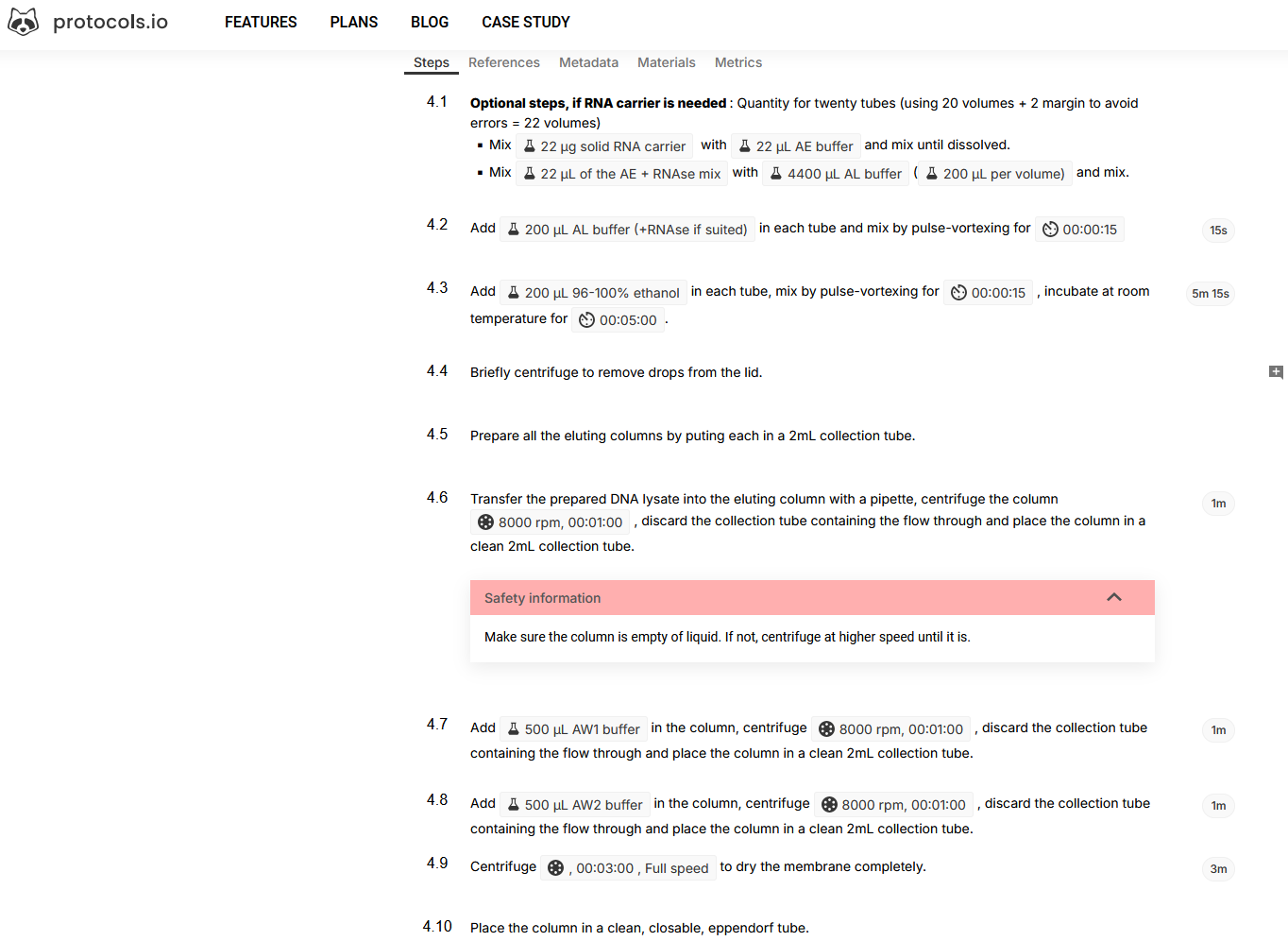

Protocols.io

Protocol example

 For more information: Protocols.io

Protocols vs. methods

Protocols.io

Protocol example

 For more information: Protocols.io

Protocols vs. methods

CAMPanule

The CAMPanule project (CAtalogue of Methods and Protocols) aims to identify and characterize the techniques, methods and protocols for acquiring naturalist data in France.

Example of collection technique: installation of a “Malaise” type entomological trap. ©Laura Savio

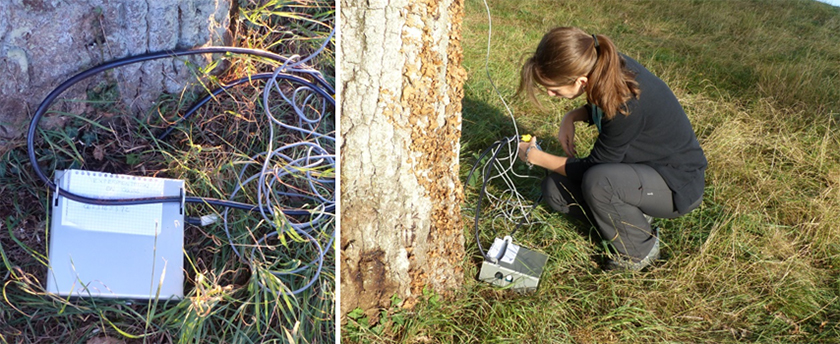

Example of protocol: setting up an ultrasound recording device for a study on bats. © Camille Gazay

Protocols vs. methods

CAMPanule

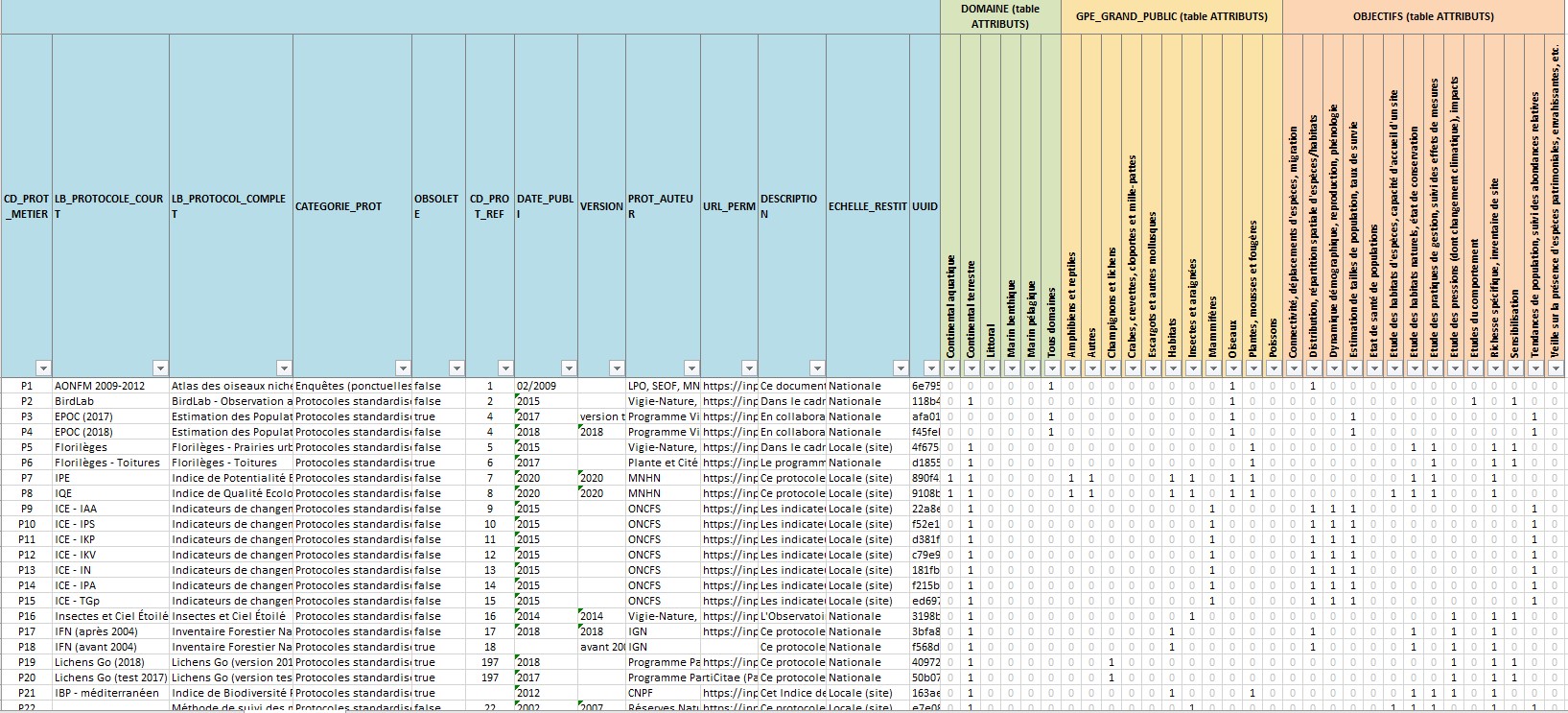

Protocol spreadsheet

 For more information: CAMPanule

Protocols vs. methods

CAMPanule

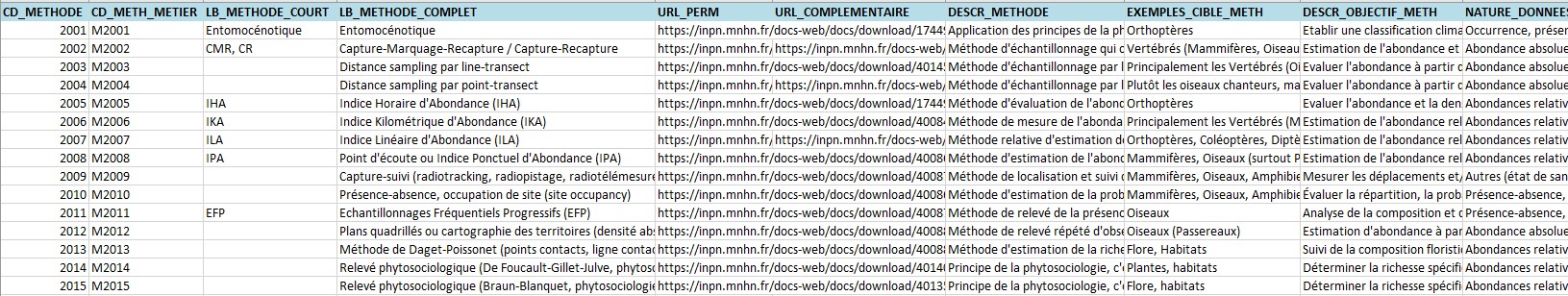

Method spreadsheet

 For more information: CAMPanule

 Resources

Resources

  • Catalogues des méthodes et des protocoles. Phase 1 : Étude de définition et proposition d’une démarche. Rapport MNHN-SPN 2014. Ichter J., Poncet L., Touroult J., 2014, Service du patrimoine naturel, Muséum national d’Histoire naturelle, Paris. Rapport SPN 2014 - 52. 32 p. link

  • CAMPanule : partager les protocoles, méthodes et techniques de collecte de données naturalistes. Rapport d’accompagnement de la version 1. Gazay C., de Lacoste N., King-Gillies N., 2022. PatriNat. 43 p. Link

  • Guide technique de la base de données CAMPanule - version 1 Gazay C., 2022. PatriNat. 25 p. Link

  • PNDB resources on data collecting link

  • GBIF resources on biodiversity data mobilization link

 biodiversitydata/protocols-methods   •    cc-by-4.0
